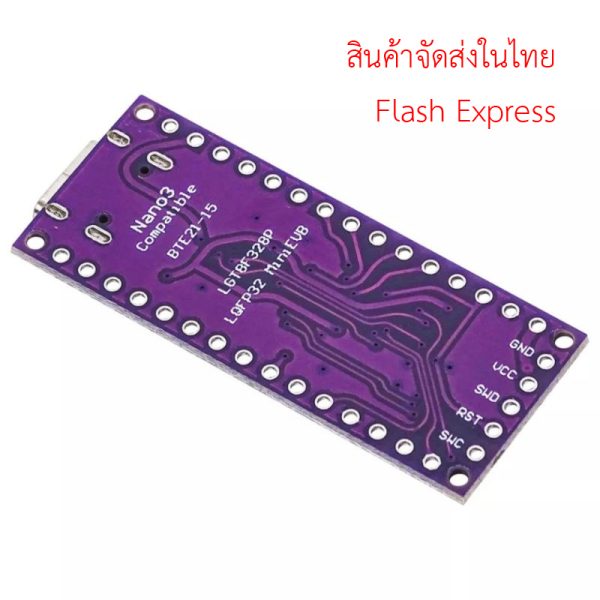

Arduino NANO (TYPE C) บอร์ดม่วงมัน LGT8F328P LQFP32 MiniEVB

฿145.00

ข้อดีคือ
ช่อง Analog (ADC) ของ LGT8F328P มีความละเอียด 0-4095 ส่วน Atmega328P ความละเอียดแค่ 0-1023

หมวดหมู่: ป้ายกำกับ: , ,

รายละเอียดเพิ่มเติม

บอร์ดทดลอง ชื่อ LGT8F328P LQFP32 MiniEVB หรือชื่อเรียกกันเล่น ๆ ในกลุ่มนักพัฒนา คือ “บอร์ดม่วงมัน” เชื่อมต่อด้วยสาย Type C แบบใหม่ล่าสุด นิยมนำมาใช้แทนบอร์ด Arduino NANO หรือที่เป็นชิป ATMEGA328P คือใช้แทนได้หมด เวลา Code ก็ใช้กับโปรแกรม Arduino IDE ได้เลย ไม่ต้องหาโปรแกรมใหม่

ข้อดีคือ
ช่อง Analog (ADC) ของ LGT8F328P มีความละเอียด 0-4095 ส่วน Atmega328P ความละเอียดแค่ 0-1023

Board Lib ที่เอาไว้ใช้กับโปรแกรม Arduino IDE
https://github.com/LGTMCU/Larduino_HSP

รายละเอียดเพิ่มเติม
8F328 Board Features
8F328P-U MCU used by the LGT8F328P, is a Atmel MEGA328P compatible chip.
8F328D architecture design is relatively new, peripheral functions far stronger than Atmel MEGA328. Especially the program encryption ability is far more than MEGA328.
8F328D can use 3V3 and 5V power supply running at 16M frequency, excellent level compatibility.
Built-in high-precision RC, no external crystal can be stable operation.
Less peripheral parts, circuit design is simple.
12-bit ADC (analog-to-digital conversion)
On board DAC
Owned GUID (unique ID) can be used for chip program encryption
Built-in internal 1.024V / 2.048V / 4.096V ± 1% calibratable reference voltage source
PWM pin number: D3, D5, D6, D9, D10, D11

ข้อมูลเพิ่มเติม

น้ำหนัก 0.01 กก.
ขนาด 10 × 10 × 10 เซนติเมตร
